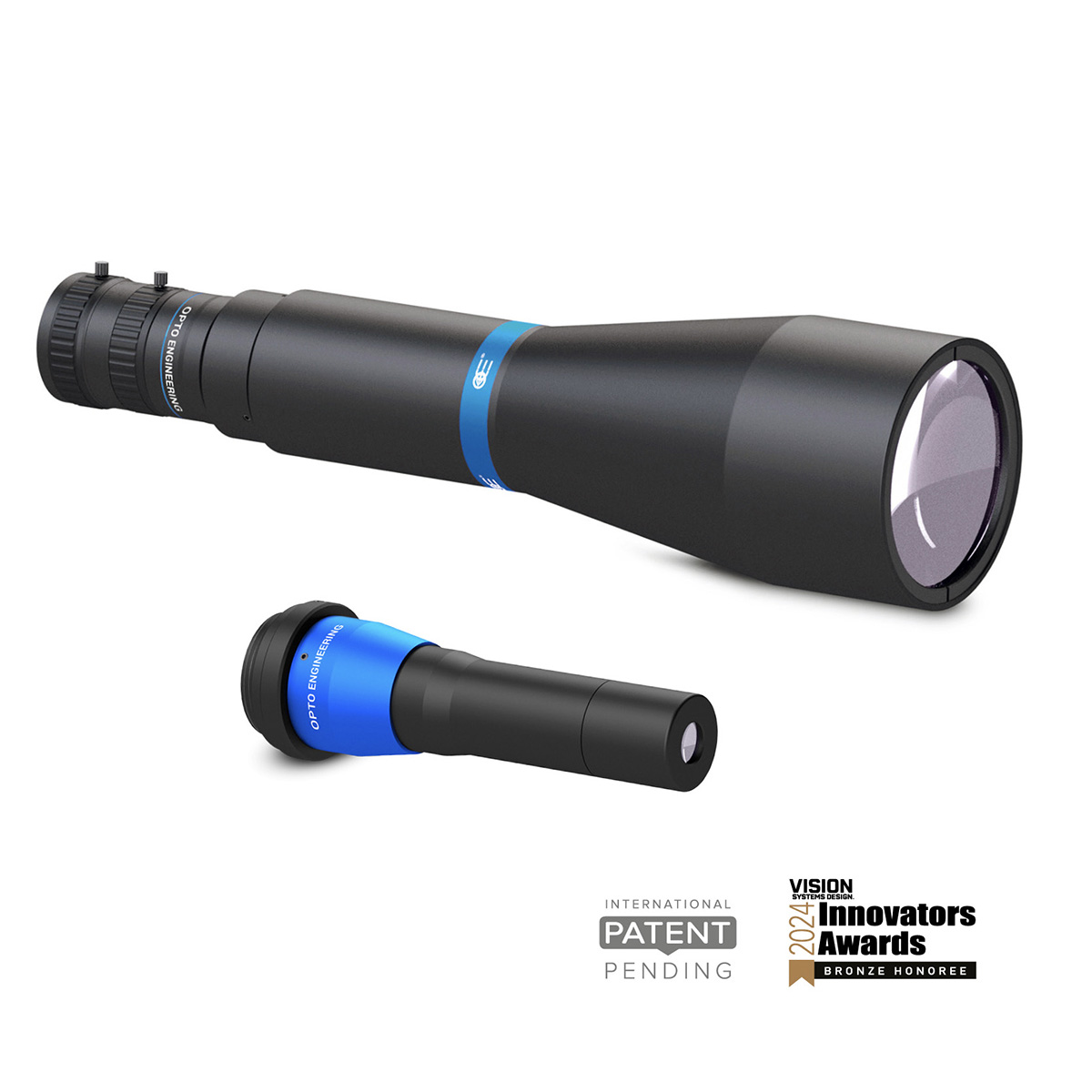

HC series
HC series features hypercentric lenses for sensors up to 1.1” designed for the simultaneous inspection of the inner sides and bottom surfaces of hollow cylindrical samples of various diameters, such as bottles, cans, vials, threaded holes, and tubes.

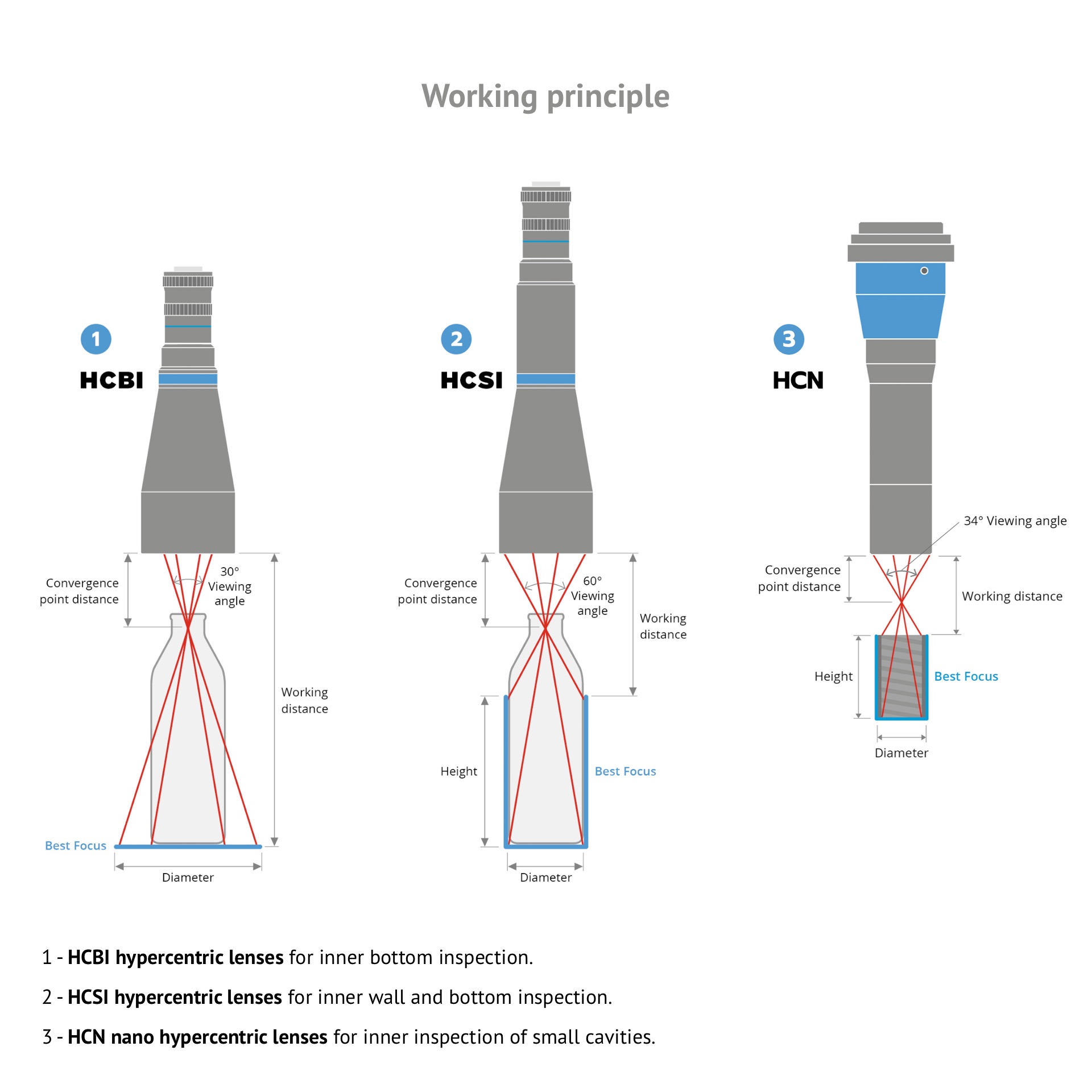

HC lenses image the inside of cavities from the outside thanks to the special optical path of the rays passing through bottlenecks and narrow openings. This unique optical design allows to fully inspect the inside surfaces of cavities without the need to rotate the sample or use complex multi-camera systems.
HC lenses image the inside of cavities from the outside thanks to the special optical path of the rays passing through bottlenecks and narrow openings. This unique optical design allows to fully inspect the inside surfaces of cavities without the need to rotate the sample or use complex multi-camera systems.
