PCCD series
PCCD series features catadioptric lenses exclusively developed and manufactured by Opto Engineering to enable the 360° top and side view of objects with a single camera.
Their innovative optical design, based on a catadioptric system, makes it possible to image objects of different diameters, ranging from 7.5 mm to 110 mm.

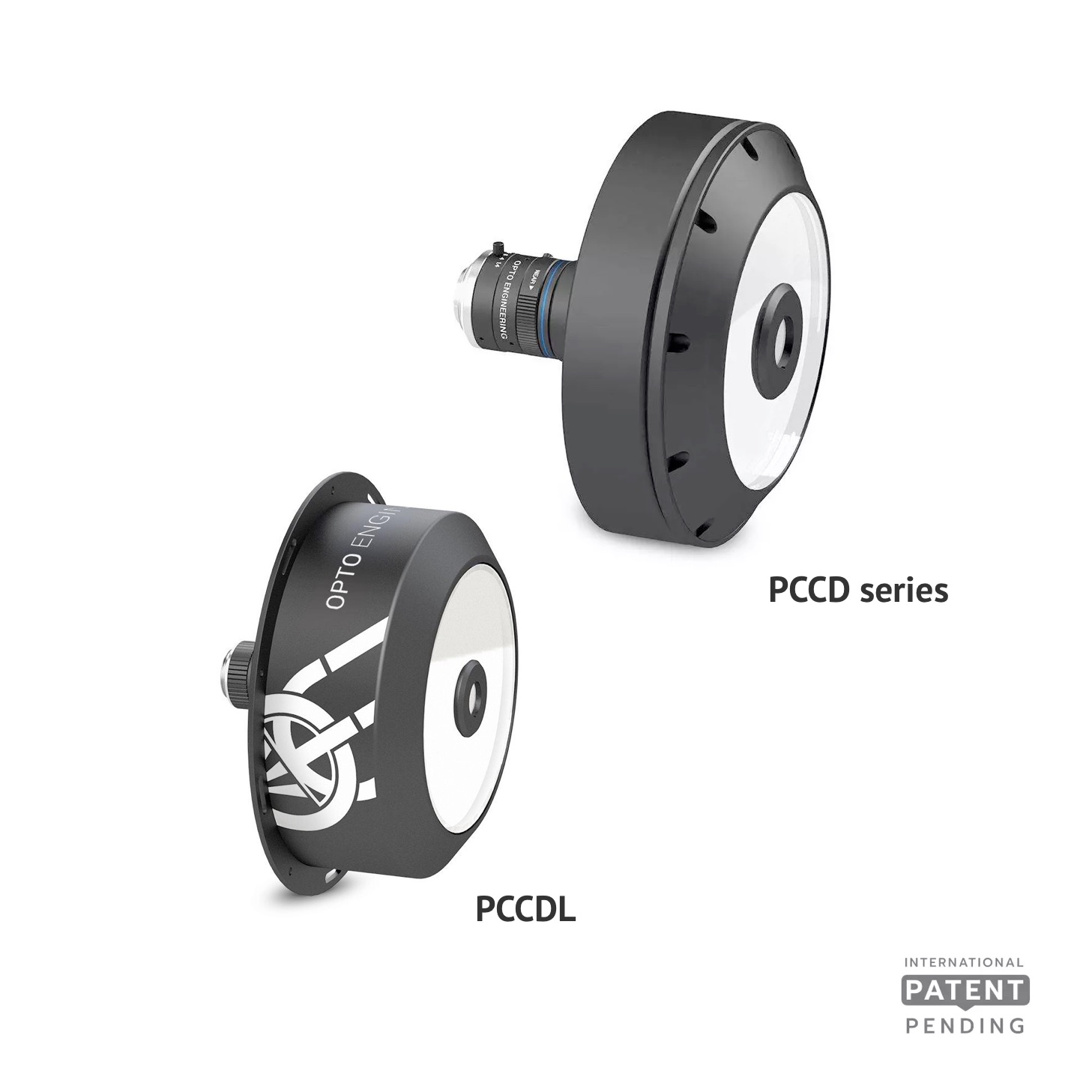

PCCDL, is now available for larger fields of view and with a more versatile design: one model for various sensor sizes.

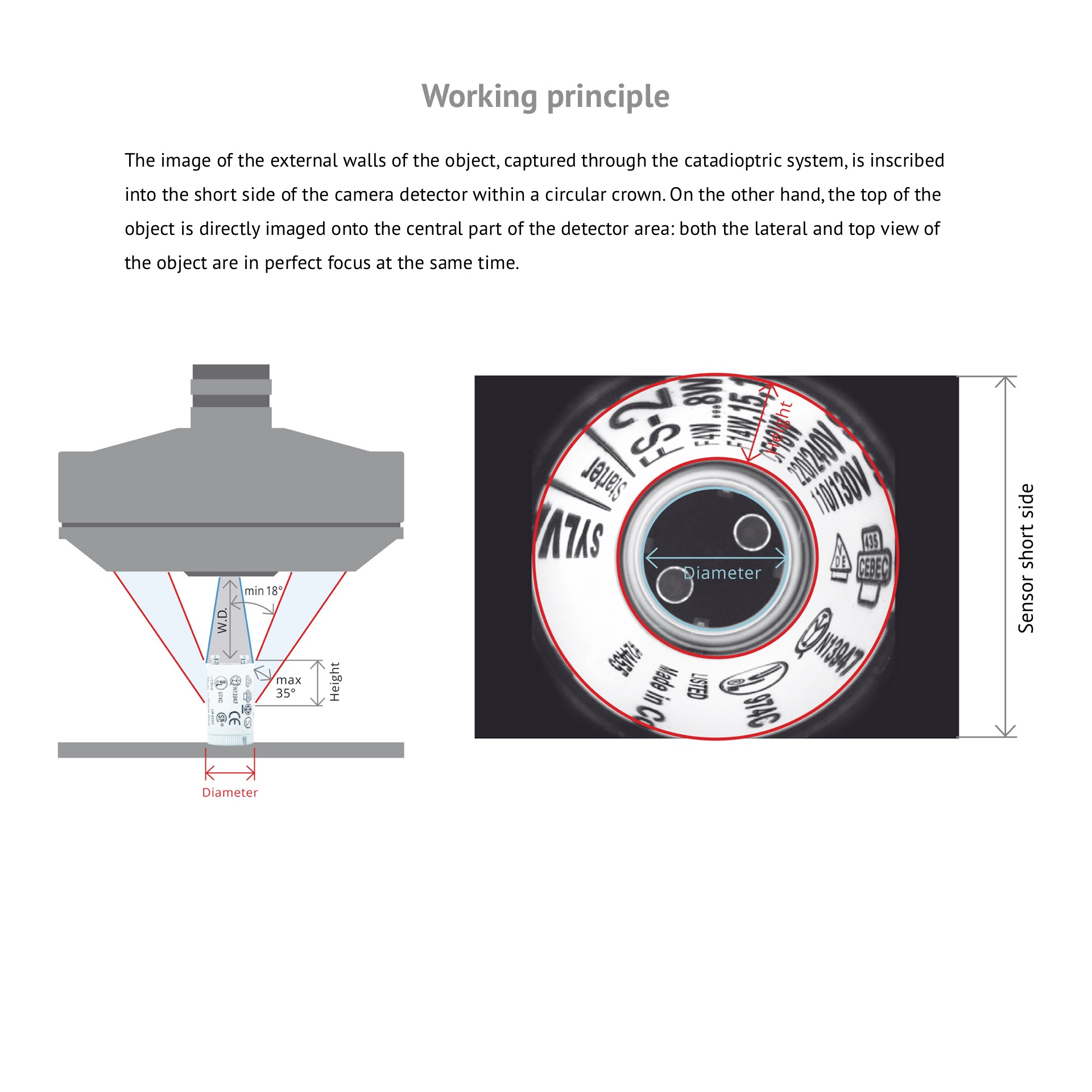

The sides of the object are imaged through the catadioptric system, while the top surface is imaged directly onto the center of the sensor area, allowing for a complete and perfectly focused view of the inspected object.
In addition, the sides of the object being inspected are observed at a wide viewing angle of 35°: this allows to clearly image the features of interest even when inspecting complex geometries.
The compactness and high resolution of these lenses make them ideal to inspect components like pharmaceutical containers, plastic caps, pre-forms, bottlenecks, screws and other threaded objects.
Their innovative optical design, based on a catadioptric system, makes it possible to image objects of different diameters, ranging from 7.5 mm to 110 mm.
PCCDL, is now available for larger fields of view and with a more versatile design: one model for various sensor sizes.
The sides of the object are imaged through the catadioptric system, while the top surface is imaged directly onto the center of the sensor area, allowing for a complete and perfectly focused view of the inspected object.
In addition, the sides of the object being inspected are observed at a wide viewing angle of 35°: this allows to clearly image the features of interest even when inspecting complex geometries.
The compactness and high resolution of these lenses make them ideal to inspect components like pharmaceutical containers, plastic caps, pre-forms, bottlenecks, screws and other threaded objects.
